Hydraulic Power Pack Supplier in Dubai UAE

We are Mega Industrial Equipments L.L.C a leading Hydraulic Power Pack Manufacturer in Dubai UAE (Hydraulic power unit) for various applications like industrial, Mobile hydraulics, and Marine applications. A hydraulic power pack generally includes an electric motor, hydraulic pump, and hydraulic valves with all hydraulic components with necessary accessories. While the hydraulic power pack begins operations, the pump pulls hydraulic fluid out of the tanks and it being pressurized flows through the pressure relief valve.

A hydraulic power unit employs enclosed fluid to transfer energy from one source to another source and frequently creates rotary motion, linear motion, or force. The power pack provides the power needed for this transfer of fluid.

Hydraulic single power pack may have connected with multiple machines and mechanisms when the hydraulic system required multistation operations

Applications of the power pack

  • Hydraulic lifting equipment
  • Machine tool
  • Mobile hydraulics equipment
  • Material handling equipment
  • Marine applications

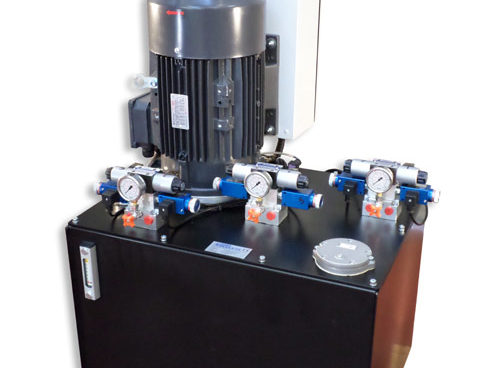

Standard Hydraulic Power Units

standard-power-units

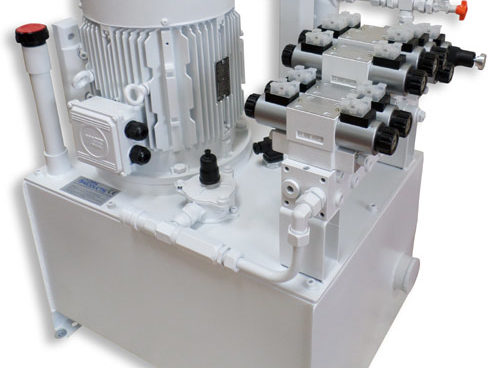

Features of the standard HPU

The standard hydraulic power units are designed to utilise a industry recognised range of modular components. This offers a power pack that can be easy to manufacture, therefore easier to install and maintain.

standard-power-units2

Hydraulic HPU

Modular construction – Bellhousing & Coupling design – Cetop03 & 05 Systems – up to 30kW AC Motors – up 300 Litre tanks – Pressure to 280bar

This hydraulic power unit uses a standard range of modular components for easy specification, assembly and maintenance in the most demanding industrial applications. With motors up to 30 kW, flow rates to 100 Litres/minute, tank capacities to 180 litres and pressure capability to 250 bar, we can offer a hydraulic power unit system to meet most industrial requirements including:

  • Cranes
  • Launch recovery systems
  • Bailers and compactors
  • Agricultural processing machinery
  • Punching machines
  • Injection moulding machines
  • Lifting equipment
  • Marine applications (test rigs, drilling rigs)

Types of Hydraulic Power Pack We Have

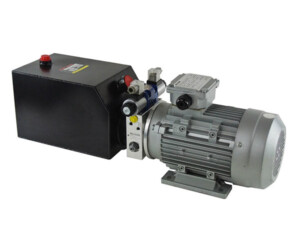

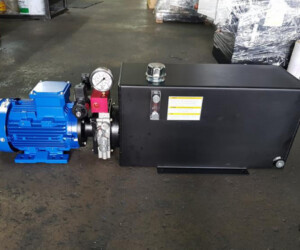

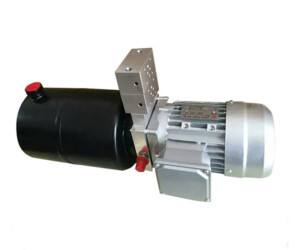

AC Power Pack

We are a Hydraulic Power Pack Supplier in Dubai UAE with 1ph & 3ph packs to 30LPM and 250 bar. AC Mini Hydraulic Power packs for Scissor lifts, Car lifts, Dock Levellers Security barriers, etc… Built to order from stock parts for fast delivery.

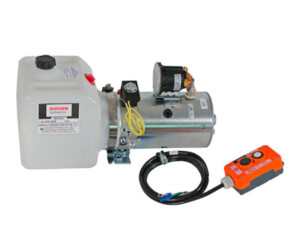

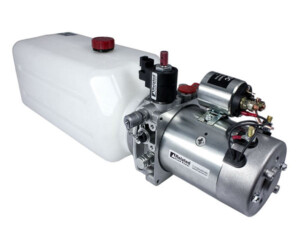

DC Power Pack

We aer leading hydraulic power pack manufacture in Dubai UAE offers 12VDC and 24VDC Motors with the option of single or double acting valves.

Common applications include:- Tailifts, Tipper Trucks and Trailers, Industrial Lifts & Stackers.

Best Hydraulic Power Pack Manufacturer in Dubai UAE

Unit options and specs

  • The hydraulic power unit components have been carefully selected by Hydra products to give an economic solution from our large stocks. As we construct units for many industrial applications we have an ever-growing component base and can cater to the majority of builds.
  • The units cater for a selection of tanks ranging from 16-180 liters and pressures up to 250 bar, with flow rates of up to 100 liters/minute.
  • The AC motors within the units are all IP55 as standard and multi-mount B35 configuration. Motor options such as Anti-condensation heaters and Ex protection are possible so please remember to enquire about these when you spec up your unit.

Wide range of applications covered

Our standard power units are suitable for a wide range of applications; one of these being the marine-based Launch Recovery System. This system is equipped with an umbilical winch which has to be able to accommodate the whole length and diameter of the remotely operated vehicle umbilical. Our hydraulic power units power the hydraulic winch motor that, in turn, controls the winch itself which is responsible for pulling in the remotely operated vehicle (ROV).

Product testing and oil filtration

  • We are one of the few companies manufacturing the hydraulic power units in Dubai UAE that fully test our units on testing rigs before dispatch, ensuring power and voltages are correct. We also carry out regular oil filtration tests to ensure that particulate contamination is avoided.
  • These test stages make sure that our units reach our customers in optimal working order and help to lengthen the operational life of our products.

Conforming to European standards

  • Power unit pumps are based on European standard 1:8 taper 4 bolt gear pumps from Groups 1,2 and 3. Low pulsation gears give a quiet and smooth flow. Group 2 and 3 pumps have cast iron flanges for extra strength.
  • All power units have 90-micron suction filters and 25-micron return filters as standard. Pressure filters to 3 microns are optional and give our power units high cleanliness levels.
  • Hydraulic power unit suppliers in UAE offer a hydraulic circuit and parts list, Hydra products offer this as well as a full installation and maintenance manual. Each power unit is supplied with a test certificate and CE approval documentation.

Bespoke design options

  • Where the hydraulic power unit (HPU) does not offer all the hydraulic features required, we can design and manufacture a full hydraulic power unit system using our proven CAD design software and renowned technical expertise.
  • We hold a vast library of modular parts that can be used to populate 3D solid unit models making the customization process easy and enabling us to standardize designs, leading to a quick turnaround of customised units. This gives our end user a solid, dependable unit with the Hydraproducts stamp of approval.

Micro Hydraulic Power Pack Supplier in UAE

UNI-DIRECTIONAL

Uni-directional

Delivering up to 5LPM with only an 87mm square body – Uni-directional Power pack – for single acting actuators. Used for disabled lifts, brakes, clutches and clamping

ERA-ACTUATOR-KITS

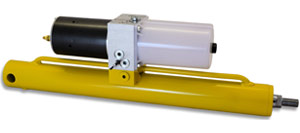

Era actuator kits

Direct mounting to cylinders. A reversible power pack and a mounting kit for complete actuator manufacturing.

REVERSIBLE

Reversible

Unique double acting circuit without using solenoid valves. HPR Reversible Power pack -for double acting actuators and motors with built in pilot check valves.

The micro hydraulic power pack is very compact and can operate both single-acting (HPU) and double-acting (HPR) applications.

The HPR micro hydraulic power unit offers the flexibility to operate double-acting hydraulic functions without the need for solenoid control valves. By simply reversing the motor the movement of a double-acting hydraulic cylinder direction can be controlled and the built-in dual Pilot Check Valves give leak-free load holding. Dual pressure relief valves give separate control in each direction whilst dual pilot check valves prevent induced pressures and noise when excess full-bore cylinder flow returns to the tank. Variations in the circuit can include manual overrides, motor spool control, and low noise relief valves.

More about Micro Power Packs

  • The HPU micro power pack has a single-acting hydraulic circuit, the check valve and solenoid valve hold the cylinder load up. A high-quality hardened steel check valve insert ensures low leakage and excellent load holding. Versions with Normally open/closed solenoid check valves and low-noise check valves are available.
  • All of Mega Industrial Equipments micro-hydraulic power packs in Dubai have a precision-engineered aluminum manifold that houses the hardened steel valves. A carefully developed micro hydraulic pump gives pressures up to 200 bar. Each manifold has an integrated 90-micron filter element, ensuring all micro-hydraulic systems are protected and give a long service life.
  • To drive the hydraulic pumps we offer DC motors from 150 to 800 watts, in 12V and 24VDC. 150 and 250Watt Fractional Horsepower AC motors as well as standard IEC frame AC motors from 0.18kW to 0.37kW.
  • Pump sizes range from 0.17cc to 1.48cc/rev.
  • Tanks from 0.1 to 1 Litre, all of which can be in vertical (tank uppermost) or horizontal orientation.

Typical Applications

Typical applications include:-

  • Mobility lifts where Wheelchairs are lifted from vehicles
  • Micropower packs for through-floor lifts.
  • Door and gate opening actuators

Mega Industrial Equipments L.L.C offers its in and around UAE, distributors reliable products through design and manufacturing expertise. The quality of in-house design, manufacturing, and experience in micro hydraulic power units ensures a match to your requirements.
