Hydraulic Accumulator

Hydraulic accumulator mostly installed in hydraulic systems to store energy in the form of fluid when under pressure and to smooth out pulsations. Typically, a hydraulic system with an accumulator can use a low flow pump because the accumulator stores energy from the pump during periods of low demand. This energy is available for immediate use, released upon demand at a rate many times greater than what could be supplied by the pump alone. Also our Hydraulic accumulator safety blocks include shut-off and discharge valves to separate the accumulator from the hydraulic system for maintenance or in an emergency.

Our hydraulic accumulator models offer high & low-pressure variants depending on the application requirements and our lightweight diaphragm hydraulic accumulators are ideal for industries where space and weight are important factors. All of these devices are available with a broad selection of configurations and are easy to install. In UAE we are the best supplier for quality design and our device guarantees optimal performance and service life.

We are the leading Hydraulic Manufacture and Supplier in UAE. Contact us for more details and prices for our Hydraulic Products.

Type of accumulator

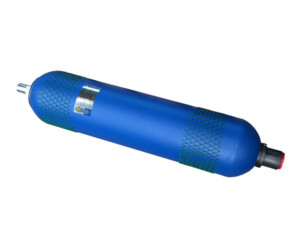

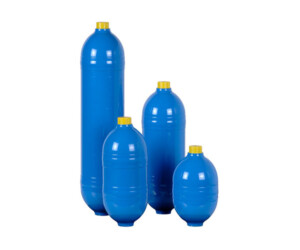

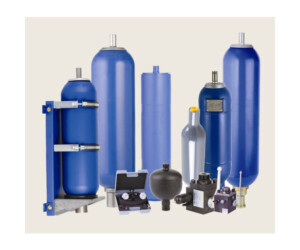

Bladder Accumulator

Specification

Maximum working pressure (PS): 350-480-690 bar
Test Pressure (PT): PS x 1,43 / 1,3 / 1,5
Body: forged steel, sand, and painted
Standard nitrogen valve: ⅝” UNF
Working temperature (TS): -20°C ÷ +80°C
Standard bladder: can be used with mineral
Oils and non-corrosive fluids
Installation: horizontal / vertical (nitrogen valve upward)

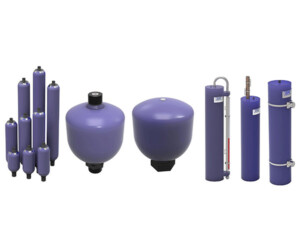

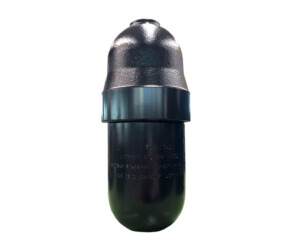

Diaphragm Accumulator

Specification

Maximum working pressure (PS): 250 bar
Test pressure (PT): PS x 1,43 / 1,3 / 1,5
Construction method: carbon steel body with caulking, without welds, not repairable/not disassemble; piston in aluminum
Standard nitrogen valve: ⅝” UNF
Working temperature (TS): -20°C ÷ +80°C
Seals: standard execution in NBR
Installation: in every position
